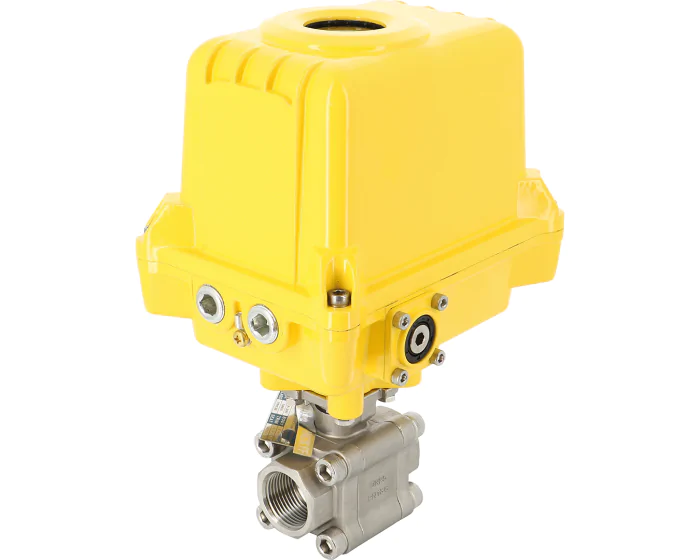

The 703 XS 3-piece ball valve has a stainless steel 1.4408 body and ball and PTFE/glass seats. It is actuated with an ATEX SAX/NAX electric actuator. PS: 137 bar, TS: 180°C. Threaded G or welding BW.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX atmosphere | IIB |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Power (W) | 6 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA05-X |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 230 V AC | 271372023310 | S1005912 |
€701.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 230 V AC | 271373023310 | S1005913 |
€712.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 230 V AC | 271374023310 | S1005914 |
€741.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 230 V AC | 271375023310 | S1005915 |
€786.43
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 230 V AC | 271376023310 | S1005916 |
€831.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 230 V AC | 271377023369 | S1005917 |
€846.60
(excl. btw)
|
add to cart |
